SIG5561: IoT GATEWAY TEMPERATURE SENSOR
SIG5561
Descripción

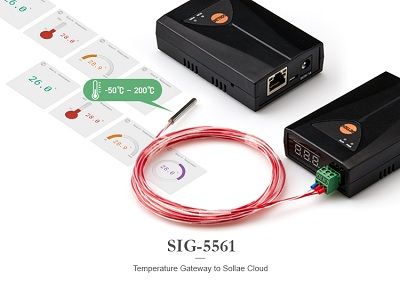

SIG-5561 is a temperature gateway that reads the temperature value from a resistance temperature detector PT100 and sends it to Sollae Cloud. Users can log in to Sollae Cloud to see the visualized temperature value via a Web interface. The device is connected securely to Sollae IoT Cloud via MQTT protocol.--Depending on users' configuration, users can set actions that trigger relays on other devices (SIG-5451, SIG-5601) in response to temperature fall below/rise above predefined values. It can also alert users via the web UI.--Since SIG-5561 is connected to Sollae IoT Cloud, it benefits from various Sollae IoT Cloud features, such as real-time monitoring, secure, user-defined event, alarming, and different web interfaces. It is very easy to use. Users just need to connect to the Internet, sign into the cloud, register the device to the user's account and interact with the device via the web. Visit Sollae Cloud for more information.--Features---PT100 connection port: support 3-wire PT100 sensorsDisplay: a red 3-digit 7-segment LEDProtocol: MQTT over TLSAuthentication: TLS Client certificateSupport multiple accesses via CloudFree to use Sollae CloudCustomizable web User Interface for monitoring with Sollae StudioMeasurement Error: within ±0.3? (±0.54?)Maximum Measurement Range: -200? ~ 850? (-328? ~ 1562?)Device operation temperature range (Industrial: -40? ~ +85?)NOTE: SIG-5561 device supports the PT100 sensors that has the measurement range of -200? ~ 850? (-328? ~ 1562?). But the measurement range depends on the PT100 sensor. We provide a PT100 sensor that has the measurement range of -50? ~ +200? as an option. If users need a larger range, use another PT100 sensor.Plazo standar: 3 semanas... Datasheet SIG5561
Garantia
La garantia minima de 2 años. Algunos equipos ( móduols ópticos y conversores ) tienen 5 años de garantia.
La garantia no cubre el uso indebido del equipamiento,..
La maxima responsabilidad de Astelo será el precio pagado por el cliente
